3 in 1 Laser Welding Gun Handheld Fiber Laser Iron Aluminum Welding Machine 1500W Laser Welder 1064nm Wavelength

Product Categories

Wuhan hongmeng Laser Technology Co., Ltd.

Contact Now

condition : New

Output Power : 3000

usage : welding

place of origin : Hubei,China

brand name : HM

single pulse energy : 1000J

wavelength : 1064nm

warranty : 2 years

weight (kg) : 40

key selling points : Easy to Operate

Product name : Handheld Laser Welding Machine

Application : Welding Products

Laser type : Continuous Fiber Laser

Keywords : High-quality Laser Welding Machine

Laser power : 1000W 2000W 1500W 3000W (optional)

Application material : Metal Stainless Steel Aluminum

Price : CN¥2,874.64/sets

Contact Now

Laser System	RL-MINI-1500W	RL-MAX-3000W
Laser Type	1080nm Fiber Laser
Laser Power	1500W	3000W
Cooling System	Water Cooling
Way of working	Continuous / Modulation
Laser source	MAX/Raycus/BWT
Laser head	Dual Axis
Speed range of welder	0~120 mm/s
Focal Spot Diameter	0.5mm
Ambient temperature range	10~40℃
Environmental humidity range	<70% without condensation
Welding thickness	0.5-3mm
Welding gap requirements	≤1.2mm
Operating Voltage	220±10% V AC, 50/60Hz
Machine Dimensions	745516710mm
Packing Weight	160kg with auto wire feeder
Fiber length	Standard 10m, the longest customized length15m

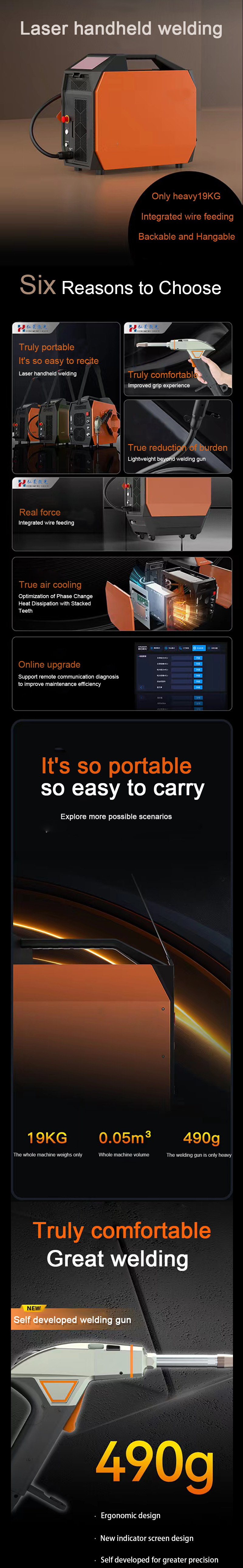

3 in 1 Laser Welding Gun Handheld Fiber Laser Iron Aluminum Welding Machine 1500W Laser Welder 1064nm Wavelength Images
